Description
Click here to download the PDF catalog

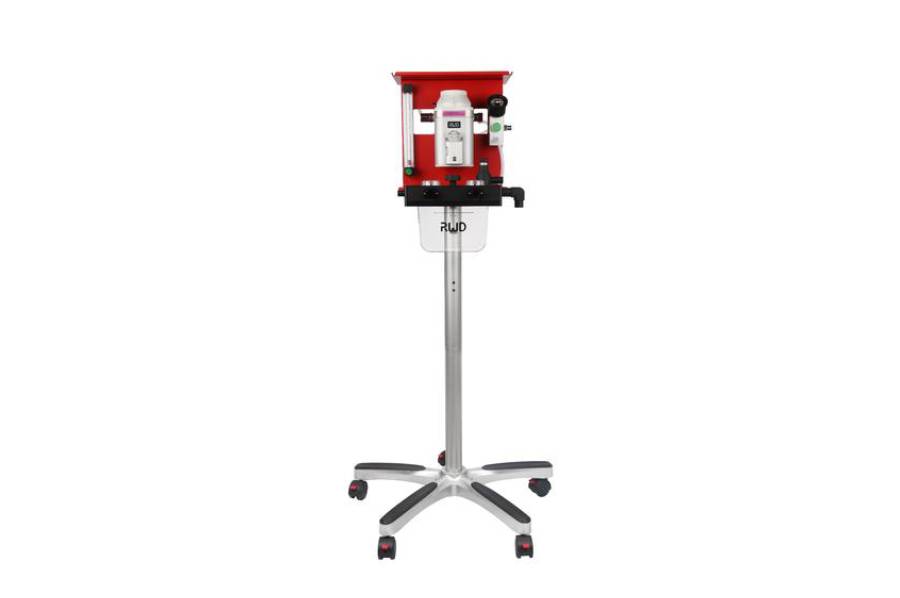

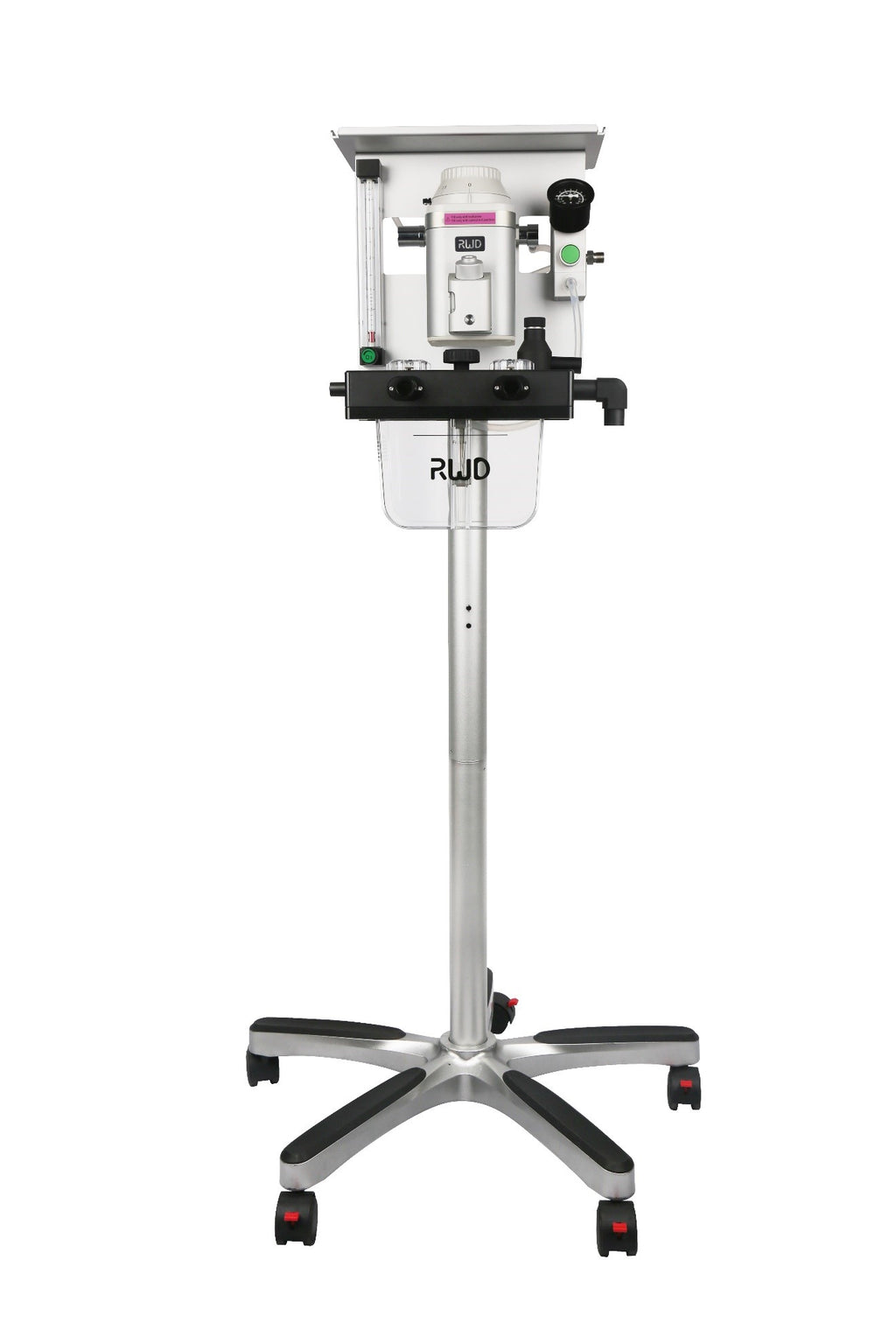

R620-S1 is one of the most popular models among the global 30,000+ veterinarians, applicable to veterinary use, for animals within 100kg such as dogs, cats, pigs, monkeys, rodents, reptiles, birds, etc. With minimal operation design, the vet shall feel easy, safe, and reliable to perform surgery on animals.
Features:
- High accuracy vaporizer, each one has an independent report
- APL valve for quick-occlusion, convenient for intraoperative emergency needs
- Rail-mounted CO2 absorber, so easy to install and disassemble
- 0-4L/min flow meter, red cylindrical float, stable and easy to read
- Good waste gas scavenging system, remove waste anesthesia gases from the operating room
- Simultaneously equipped with rebreathing and non-rebreathing circuit systems, and can be shifted by one switch
- Two options for pole mounts: five-foot base/H-base
- Support hanging E-type oxygen cylinder
- Convenient monitor shelf
- Limited 3-year warranty
Technical:
- Flowmeter: 0.1-4L/min
- Vaporizer Output concentration: Isoflurane 0-5%, Sevoflurane 0-8%
- Accuracy: +-0.1%（0-1%）+-0.15（>1%）
- Work temperature: 10-35℃
- Volume: >120ML
- CO2 Absorber: 2.1L
- Type Vaporizer: optional-Pour Fill, Easy Fill, and Key Fill
- APL valve for quick-occlusion, convenient for intraoperative emergency needs
