Radiofrequency electrosurgical unit suitable for small and medium monopolar works.

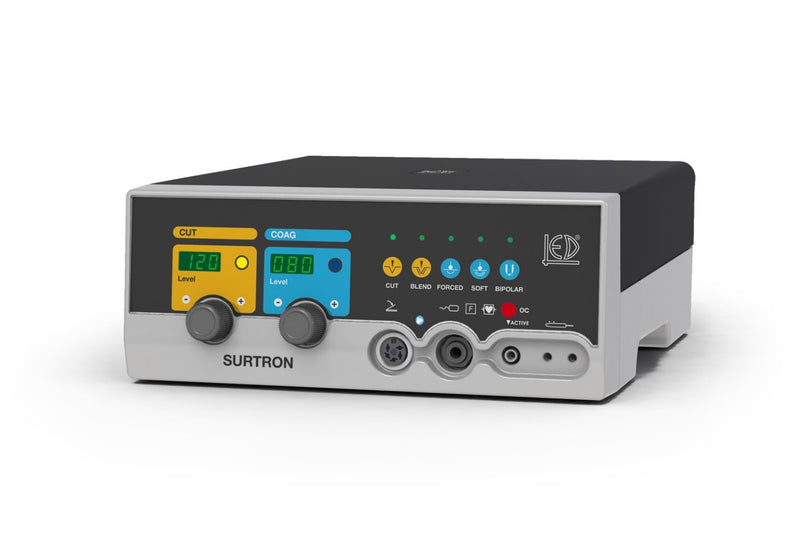

SURTRON 120 is a high frequency electrosurgical equipment which is suitable to light and medium surgery.
SURTRON 120, through its performance, allows pure CUT, cut-coagulation BLEND, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and, with a special adapter, BIPOLAR coagulation.
The digital reading of delivered power and the monitoring of operative function by microcontroller guarantees the absolute reliability of working conditions.
SURTRON 120 allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.
The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the monopolar output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
FEATURES Code 10100.201 Max output power CUT 120 W-250 Ω Max output power BLEND 90 W-200 Ω Max output power FORCED COAG 80W-150Ω Max output power SOFT COAG 60 W-100 Ω Max output power BIPOLAR 40 W-100 Ω Working frequency 600 KHz Patient circuit F Selectable input voltage 115-230 Vac Mains frequency 50-60 Hz Electrical input power 300 VA Size WxHxD 254x104x288 mm Weight 5 Kgs
CONTROLS Patient/Plate circuit monitoring Output power monitoring Self check control
SAFETY EN60601-1 EN60601-1-2 EN60601-2-2 Electrical Class: I CF MDD 93/42/EC Class: II b
