The compressor can be used for ventilator or anesthesia machine at at all levels, clinical first aid and respiratory treatment, and intensive care unit (ICU),operation room,scientific experiments, pneumatic instrumentation and other applications. Meet 9706.1-2007 "Medical Electrical Equipment Part General requirements for safety" of the I Class B equipment requirements.
Features:
- Auto-start function when central gas system failure.
- Build pressure Pressure safety valve no exceeds the safe pressure 600kPa.
- Oil-Free Compressor with temperature protection. Both operation mode at continuous and intermittent mode.

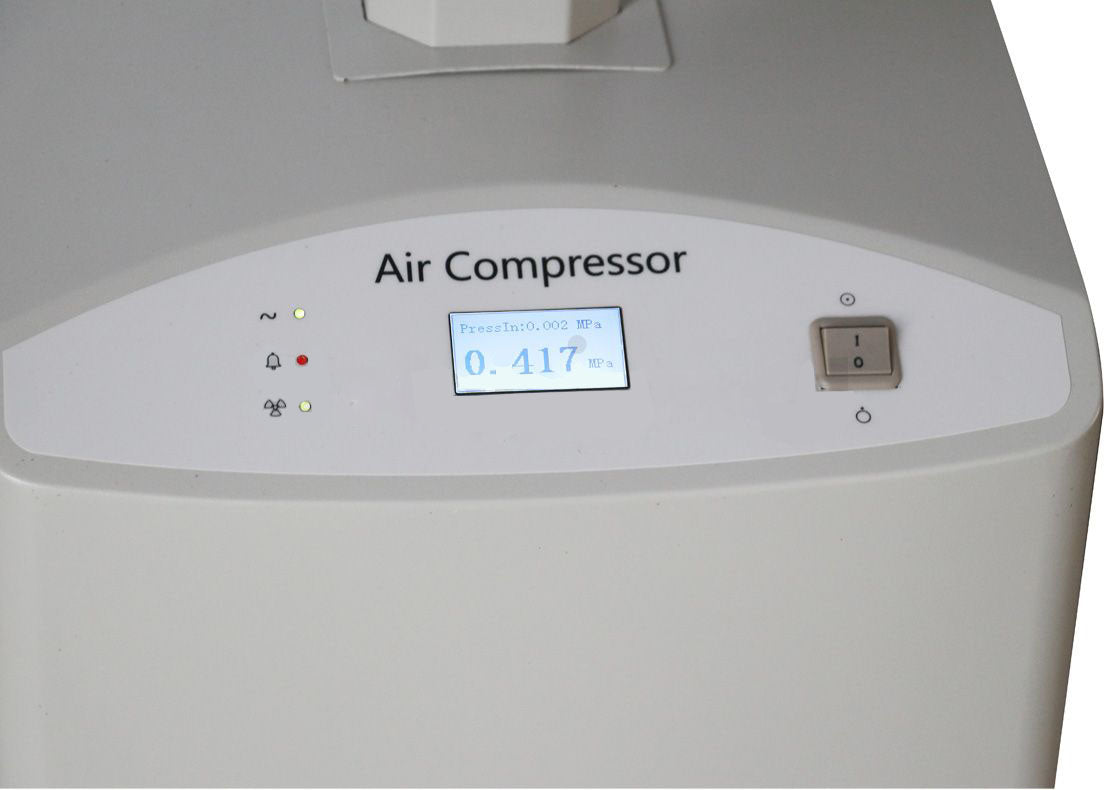

- LCD screen to display output pressure and working time. With pressure adjustment knob, easy to adjust the needed pressure.
- Compact design and easy to transfer.
- Assembled with clean control module, supplying cleaner and safe air to the patients.
- Effective sound-absorbing materials, reducing noise lower than 51db.
- Build-in temerature tranmit system,will auto close while temperature decrease to the certain value.
- Match with various brand ventilator or anesthesia machine brand to supply gas Superior & high resolution 0.3mm FOCAL SPOT.
Technical Specifications:
|
Type
|
Specifications
|
Notes
|
|
Output gas flow
|
≥40L/min
|
|
|
Output gas pressure
|
0.3～0.4Mpa
|
Adjustable
|
|
Output gas filter accuracy
|
0.03μm
|
|
|
Air compressor pump
|
1sets
|
|
|
Efficient rate for particle filtration
|
99%
|
|
|
Dew point of output gas:
|
0～10℃
|
Dried output gas
|
|
Noise
|
＜51dB(A)
|
|
|
Power supply
|
100-240VAC,50/60Hz.1A(Max),＜800W
|
|
|
Working Environment
|
Temperature 0～40°CHumidity＜90RH
|
|
|
Net weight
|
30kg
|
