Description
Connectivity with any direct digital system to our radiological

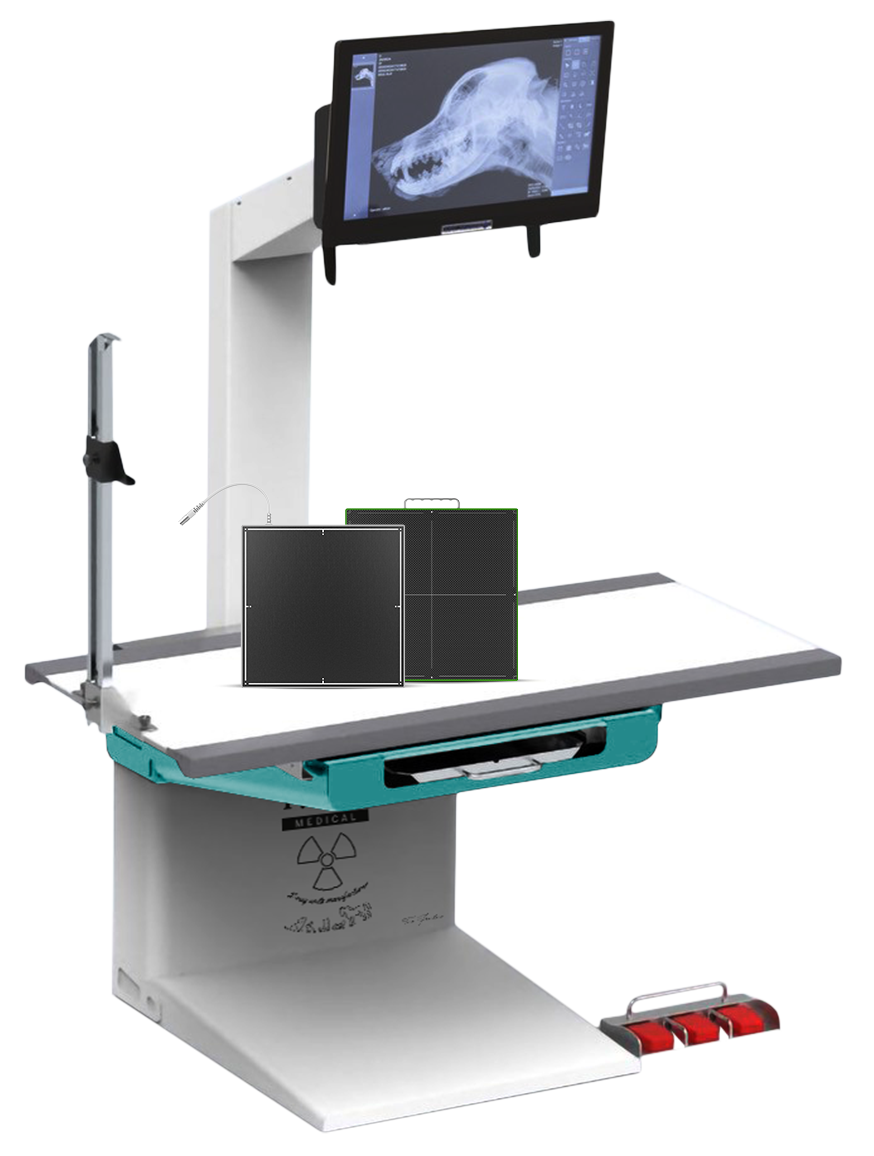

Motorized stretcher table with up-and-down movement to protect the health of the clinician and improve the quality of intervention on the animal
Connectivity with any direct digital system to our radiology.
Components and certifications updated to 2024.
Custom design and construction of radiological equipment as needed.
Rotating head and moving column for diagnosis on exotic animals and for orthopedics: thanks to their dynamics in movement, they allow radiographs to be taken at different angles for various projections to be made, making the operator’s work easier and faster.
Specifications:
- Head rotation +/- 90° (optional)
- EIZO medical monitor with 7m video cable
- Monitor touch screen 21″
- NEMO SPACE VET interface
- Motorized diagnostic table with variable height
- Foot pedals for movement and motor brake
- Direct Digital Panel included
- Side panel holder for horizontal projections
DATA SHEET:
DIMENSIONS:
L 150 x L 105 x H 205 cm
X- RAY GENERATOR:
Monobloc
Max Power 30 kW
Max Voltage 125 kV
Max Power Supply 400 mA
Selection of exposure time from 0,002 to 1 sec.
X-ray foot switch in 2 steps, cable 6 mt long
Leakage radiation less than 3,5 μ SV/h in accordance with IEC EN 60601-1-3
X-RAY TUBE:
X-ray tube with rotating anode
Focal spot 0,6-1,3 mm
Anode angle 15°
Heat capacity from 80KJ - 107 KHU
ANTI-SCATTER GRID:
Removable anti-scatter grid 35 x 43 cm 103 lines/inch
POWER:
Standard Voltage 230/240 V ± 10% 50-60 Hz
Power consumption less than 1A
COLLIMATOR:
Manual setting field
Variable range at 43x43 cm @ 100 cm SID
High intensity white LED lamp 160-220 lux at 100cm with automatic switch
OPTIONAL:
X-ray hand switch
Table top up to 2 meters long on request
Removable anti-scatter grid 43 x 43 cm 210 lines/inch
Different colors available on request
DR flat panel holder for lateral projections
Mobile column and rotating head +/-90
Floor track
TABLE:
Patient support table 4 ways with mechanical brakes
Max weight capacity for patient support table 100 kg
Table absorption thickness 5mm 0,8mm
Film focus distance 100 cm
Standard table top length: 150 cm
Foot pedals for table top movement and motor brake
21’’ full HD touch screen for greater operator efficiency in carrying out the work process
EXAMVUE DUO SOFTWARE:
Simple and intuitive software for patient and owner registration, anatomical part selection and veterinary-specific measurements with Tutorial
Setting patient parameters in thickness
Anatomical parts programmed and reprogrammable on request to technical service
One of our highlights is a professional positioning guide that assists veterinarians during examinations, ensuring high quality images with anatomical precision
With the ‘Full Digital’ line, veterinarians have the possibility of conducting the entire examination process in a single interface, allowing a smoother workflow and avoiding the need to switch from one phase to another
Second Eizo medical monitor 24”
X-RAY DETECTOR:
WIRELESS:
Scintillator Direct Deposit CsI:TI
Active Area 433.5 x 433.5 mm
Pixel pitch 154 µm
Image Acquisition Time: 2-3 sec (wired) - 4-5 sec (wireless)
WIRED:
Scintillator Direct Deposit CsI:TI
Active Area 430 x 430 mm
Pixel pitch 140 µm
Image Acquisition Time: 2-4 sec
