Description

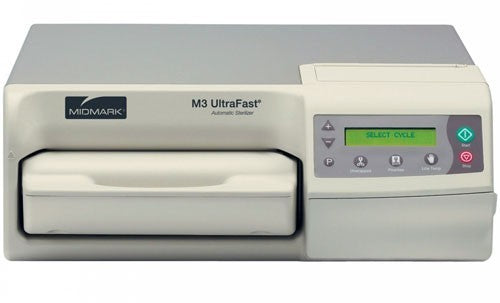

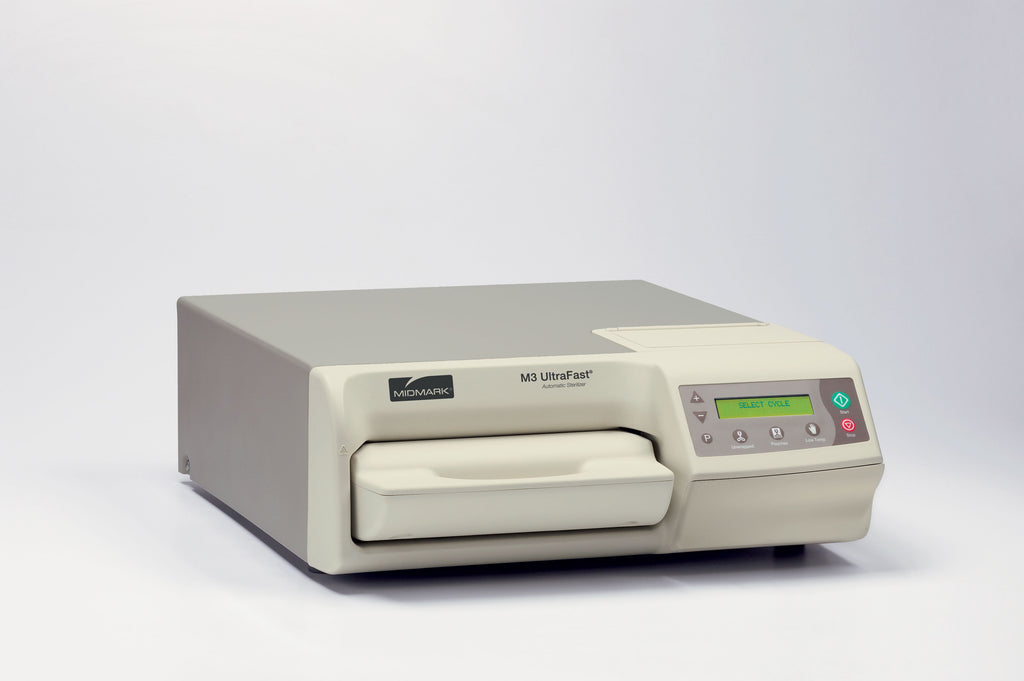

When you need it now, turn to the M3 UltraFast Automatic Sterilizer for the rapid cycle time your busy schedule often demands. Sterilize unwrapped instruments in only 6 minutes and pouched instruments in just over 10 minutes. From the simple way you load and unload the tray to thoughtful touches like the ergonomic handle and quick-release top, this autoclave’s sophisticated technology is easy to use.
Features
- One-step loading
- Push-button cycle selection
- Automatic-open door
- Intelligent features monitor water levels for worry-free operation
- Top fill for convenient access to water reservoir
- Front reservoir drain with on-board drain tube storage
- Condensate tank with quick-release lid, convenient carrying handle and water level sensor
- Steam-flush pressure-pulse air-removal system designed to ensure proper steam penetration
Overall length w/plug:
22" (55.9 cm)
Overall width:
17.8" (45.2 cm)
Overall height w/printer:
7.1" (18.0 cm)
Minimum countertop area:
24" (61 cm) D x 22" (55.9 cm) W
Chamber:
12.1" (30.7 cm) L x 7.6" (19.3 cm) W x 1.6" (4.1 cm) H
0.49 gal (1.8 liters) usable volume
Trays:
11.75" (29.8 cm) L x 7.25" (18.4 cm) W x 1" (2.5 cm) H
Holds the Hu-Friedy® Signa-Stat Cassette (6.5" x 10.5" x 1.25")
Unit weight:
71 lb (32.2 kg)
Shipping weight:
80 lb (36.3 kg)
Water reservoir capacity:
1.2 gal (4.5 liters)
Electrical requirements:
115 VAC, 50/60 Hz, 12 A single phase
230 VAC, 50/60 Hz, 6 A single phase
Heater Power: 1,400 W
Maximum power consumption: 1,400 watts
Safety Standards:
UL -listed to U.S. & Canadian standards
UL 61010-1, 2nd edition
IEC 61010-2-040, 1st edition
CAN/CSA C22.2 No. 61010-1, 2nd edition
CSA C22.2 No. 61010-2-040
Meets the requirements of ASME Boiler and Pressure Vessel Code.
A separate (dedicated) circuit is recommended for this sterilizer.
Installation: Use on a level, water-resistant surface. For proper air circulation, allow a minimum of 2" (5 cm) clearance on sides and top; 4" (10 cm) clearance behind. Allow proper clearance for access to the reservoir fill port located on top of the sterilizer. Also, allow 14" height clearance for condensate tank.
