Description
Features:

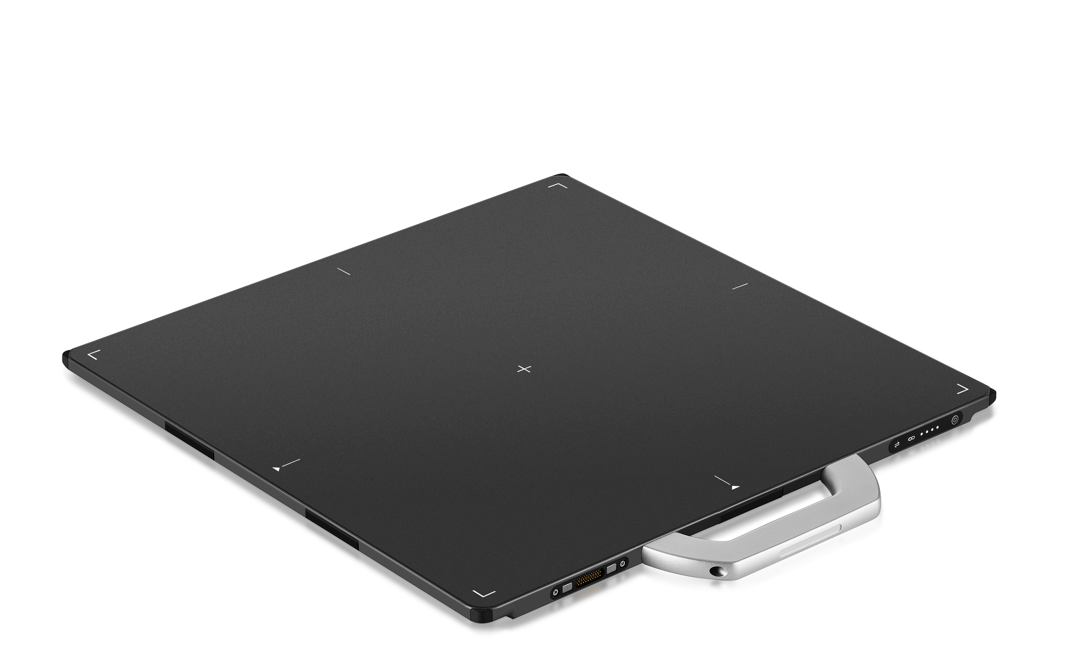

- 17”X17” portable cassette-sized flat panel detector
- Stable and reliable AED (Automatic Exposure Detection)
- Anti-collision and waterproof structure（IP64）
- Large capacity battery, with 6 hours battery life
Specifications:
| Model No. | |
| Technology | A-Si TFT |
| Scintillator | CSI |
| Pixel Pitch | 139 um |
| Grayscale | 16bit |
| Image Acquisition Time | 2S |
| Recommended Cycle Time | 5S |
| Pixel Matrix | 3072x3072 pixs |
| Active Area | 430mmx430mm |
| Storage | 100 pictures |
| Spatial Resolution | 3.5lp/mm |
| Weight | 4.5kg |
| Dimension(HxWxD) | 460x460x15.5(mm) |
| Battery | 6000mAh / 44.4Wh / 7.4V 15sec quick replacements charging time 3H |
| Operating environment | temperature: 5° -35° , humidity: 30-80% RH(non-condensing) |
| Storage environment | temperature: -10° -55° , humidity: 15-90% RH(non-condensing) |
| Soft Trigger | Soft trigger/AED |
